AR-10 Diamond Trigger (Single-Stage)

Regular price $419.99

Shipping Warning
Short Description

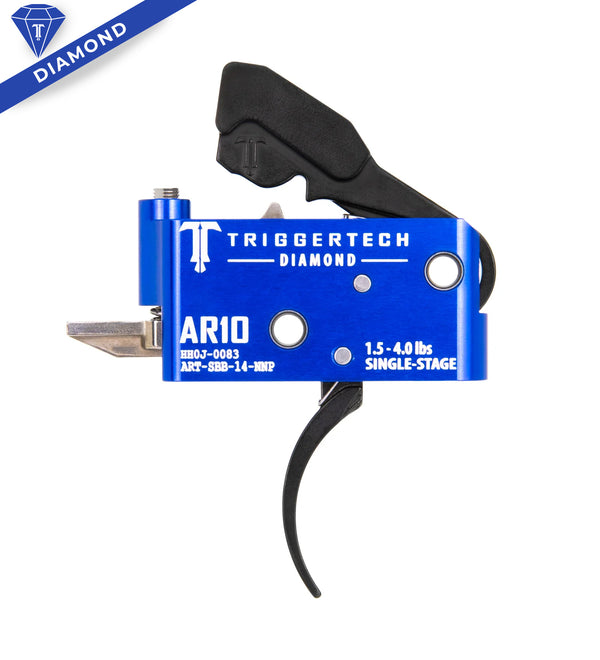

TriggerTech's top level Diamond for the AR-10 with a single stage trigger mechanism, adjustable pull weight and Zero Creep Technology.

Pull Weight

1.5 - 4.0 lbs

Lever

In stock

Description

The TriggerTech AR15 Single-Stage drop-in AR trigger provides a true zero-creep break, extremely short overtravel, a sub 0.030” tactical reset and offers outstanding reliability, even in the harshest environments.

  • Pull weight range of 1.5 - 4.0 lbs
  • CLKR Technology
  • Available with pro curved or flat trigger lever

Featuring Zero Creep Technology™, along with hardened 440C stainless steel internal components ensure corrosion resistance and an extended service life. As Zero Creep Technology™ does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot and after thousands of shots than you ever thought possible.

Download the instruction manual here.

All pull weights and measurements are approximate.

The installation guide is directed to experienced professional gunsmiths who understand the workings of their AR rifle and know how to fully detail strip the lower receiver. If you do not have these skills, we strongly suggest you retain the services of a competent professional gunsmith to install your trigger, and perform all important safety checks.

Intended Use

3 Gun, close quarter engagement, competition, harsh environments operations, high speed shooting, law enforcement, long range hunting, military, precision shooting, rugged hunting, target shooting, varmint hunting.

Trigger Control Details

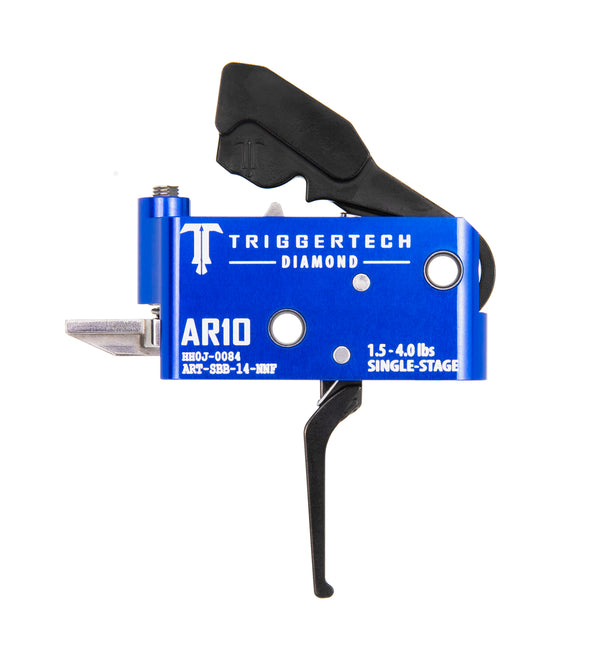

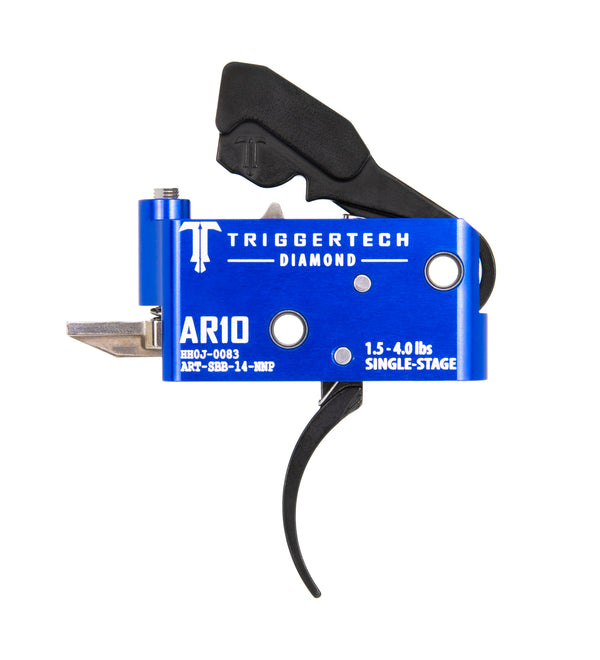

Trigger Lever Type: Pro Curved or Flat Straight

Trigger Action: Single-Stage

Zero Creep™: Yes

TKR Technology: Yes

CLKR Technology: Yes

FLTWR Technology: Yes

Creep: 0.000""

Overtravel: < 0.015""

Reset: < 0.030""

Reset Feel: Tactile mid force

Hammer Strike Force: Full

Pin Size: Standard Mil-Spec Pin 0.154"" (trigger pins not included)

Satisfaction Guarantee : 30 days

Warranty: Product lifetime

Weapon Platform: AR-15

Material Details

Housing: 7075 Aluminum (anodized)

Key Components: 440C Stainless Steel

PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.
